Lead Free Solder Bar Electroloy SB-SN100CL

Lead free solder bar SB-SN100CL is a lead-free solder containing tin, copper, nickel, and other proprietary elements that make this alloy suitable for Hot Air Solder Leveling (HASL) process.

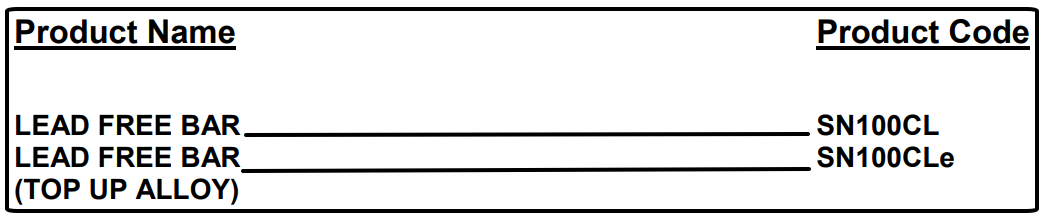

SPECIFICATIONS LEAD-FREE SOLDER BAR SB-SN100CL

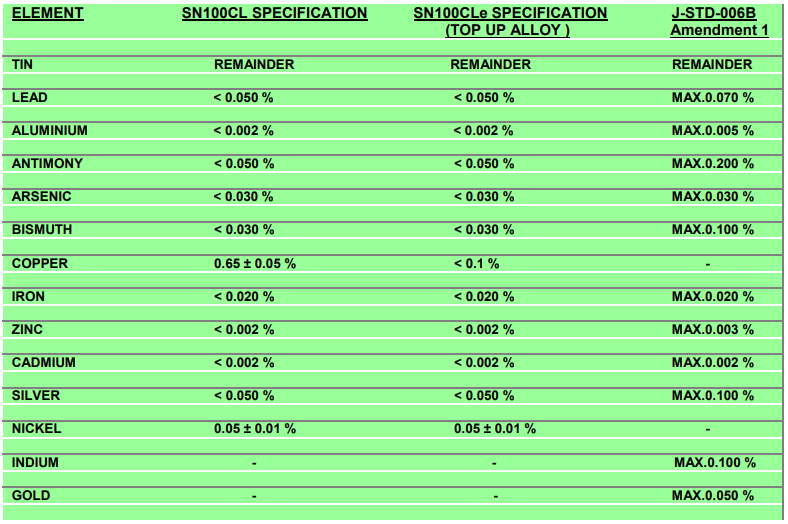

CHEMICAL COMPOSITION OF THE ALLOY

The excellent portability of the SN100CL lead-free solder bar ensures no bridging on the fine track pattern.

Good penetration of small diameter holes & uniform coating thickness and smooth luminous finish. The SN100CL does not corrode copper on the wall and shoulder quickly through holes.

– Quality of copper coating and rails is maintained

– Less maintenance is required to maintain the composition of the weld pool

– The presence of nickel slows down the diffusion of copper and slows down corrosion

CHARACTERISTICS OF LEAD-FREE SOLDER BAR SB-SN100CL

Electroloy has entered into an agreement with FCT Asia Pte Limited to manufacture SN100CL lead-free solder bar alloy with a patent license from Nihon Superior.

All the final finishes available in the market today have merits and demerits. Many in the PCB industry are concerned about switching from HASL to a less forgiving final finish as they transit to the up-and-coming lead-free era.

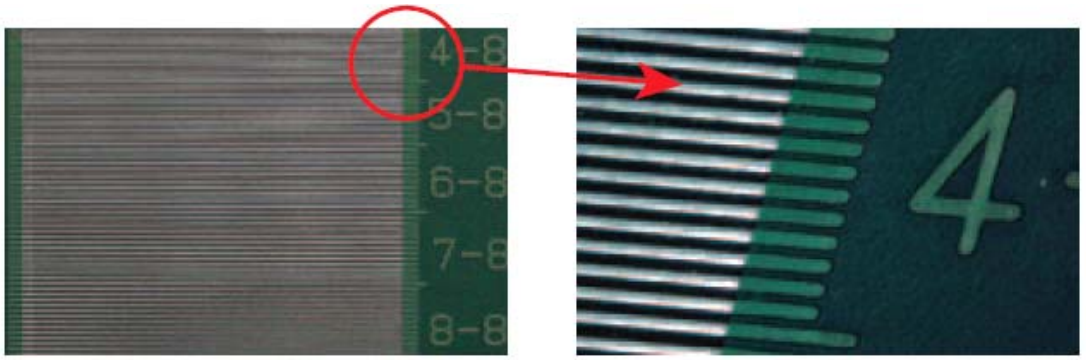

Fig. 1 Excellent fluidity of lead-free solder bar SN100CL ensures no bridges on fine pitch track pattern

The patented addition of nickel to the tin-copper eutectic offers the following advantages:

o Low-cost lead-free alloy

o Low dross than another lead-free alloy

o Excellent fluidity with very uniform and flat surfaces

o Bridge free coating and fine pitch circuitry

o Low copper erosion

o Good shelf life

o Minimal attack on stainless steel pot

o Close to the eutectic temperature

o Easy to manage alloy composition

o Compatible with both 63/37 and lead-free final assembly

– Brand & alloy codes are embossed on the surface of each bar.

– Each bar has a mass of about 700 – 900 grams.

– Physical size is about 330mm x sides equal to 24mm.

– Packing: SB-SN100CL lead-free solder bars are packed in “Green” carton boxes, each box is 20kg. Each box contains the following traceable information: supplier, grade, product code/type, batch number, and weight per box.

Fig. 2 Good penetration small diameters holes & uniform coating thickness and smooth bright finish

APPLICATION LEAD-FREE SOLDER BAR SB-SN100CL

– The SN100CL lead-free solder bar alloy can be used in both vertical and horizontal HASL machines.

– As the SN100CL solder bath is used, copper tends to dissolve into the solder from the bare board. If the copper content of the solder bath exceeds 0.85%, there is likely to be an increase in the incidence of bridges and overall graininess.

– In order to maintain the proper copper level in the bath, Electroloy recommends the SN100CLe as the top-up alloy.

– The recommended operating window for copper is between 0.5 and 0.85%. Verification of copper content is easy with lead-free solder bar Pot Analysis offered by Electroloy. The statistical analysis of your solder pot will help you monitor the copper level over time & make critical decisions to achieve good production yield with the SN100CL bars.

Pictures of lead-free solder bar SB-SN100CL

SHOULD BUY THE SB-SN100CL SOLDER BAR AT THE TECH?

Established in 2014, THE TECH specializes in distributing materials, chemicals, and components for electronic manufacturing and assembly. The products distributed by THE TECH always ensure high quality, and safety, and always comply with European safety regulations (RoHS), environmental regulatory standards, and other standards.

– THE TECH brings the best service to customers, from consultation to delivery. Optimizing shipping costs at the lowest or free shipping.

– Lead-free solder bar SB-SN100CL is always available at the warehouse to quickly respond to customers’ requests in large quantities.

– Regarding the price, THE TECH always has a suitable and very competitive price list for the SB-SN100CL solder bar on the market, which customers can refer to.

To get lead-free solder bar SB-SN100CL and the best products, materials, and components for production, come to THE TECH. Genuine products and reasonable prices bring the best economic value to customers.
